High Speed Disperser

You are here:

High Speed Disperser

Superfine grind, Homogenizing, Dispersing, Mixing and emulsifying in single process

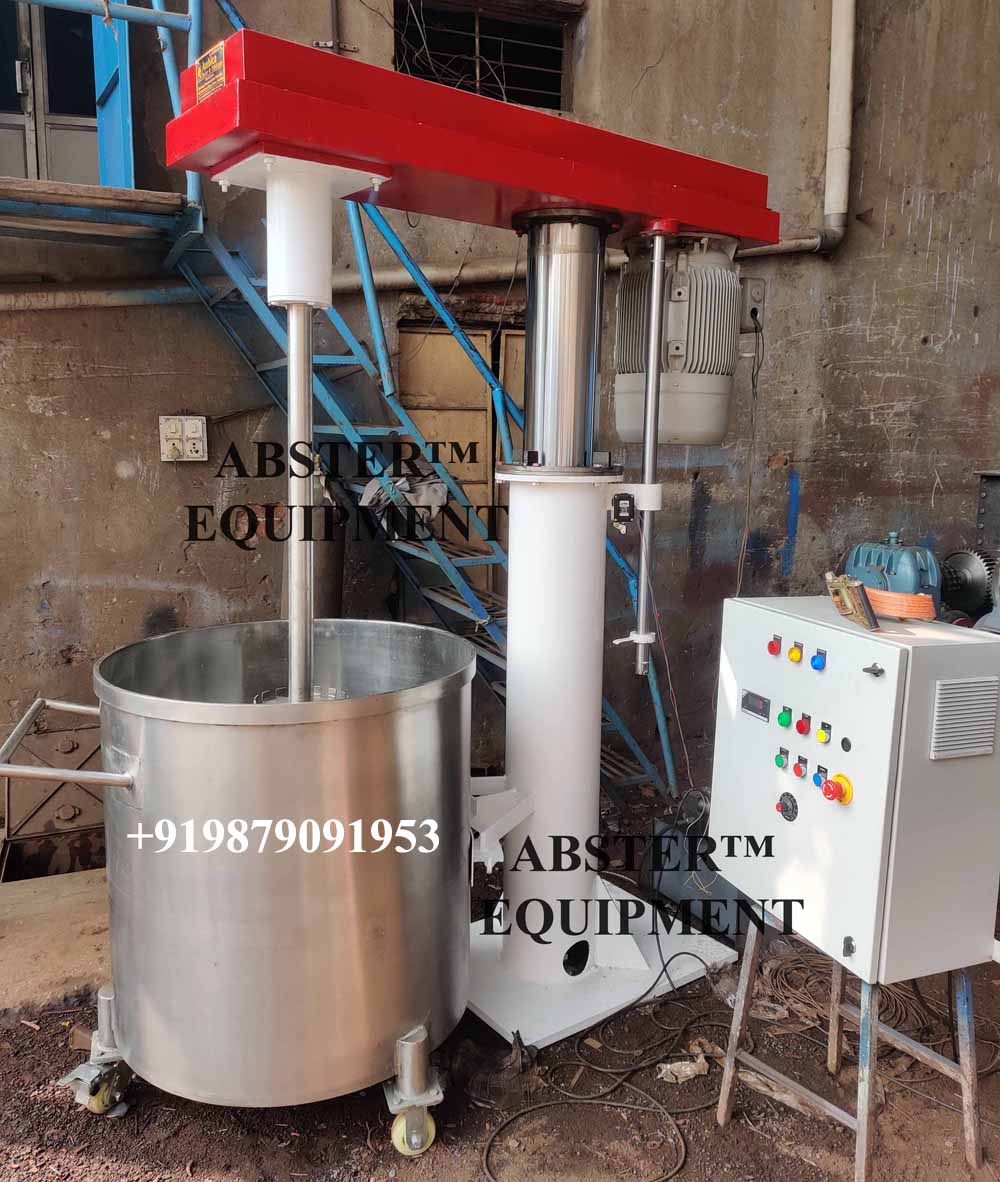

high speed disperser

High Speed Disperser Working Principle

CONSTRUCTION: The machine consists of the following

DRIVE HEAD:

Steel fabricated enclosure inside which is installed the drive assembly consisting of a set of balanced pulleys, V belts, electric motor and motor tensioning device. The drive head is of hinged type construction which can opened and locked for maintenance.

MAIN SHAFT:

A SS 304 shaft duly machined and balanced is provided with a hard chrome plated cowless disperser blade of special design for quick and efficient dispersion. The disperser's blade is made from special steel to withstand high wear and tear. The shaft is installed in a bearing housing provided with taper roller bearings. Lubrication points are provided on the housing. RPM variable from 0-1500

SPEED CONTROL:

An AC Frequency inverter installed in a panel controls the RPM of the Disperser shaft from 0-1500. The inverter is provided with settings for monitoring torque, amperage, voltage, power factor ect and is PC compatible

ELECTRIC MOTOR:

A 3 phase, 415 V, 50 HZ TEFC motor, drives a set of pulleys and V belts. The Motor is provided with a belt tensioning device.

These machines are available in a wide range and diversity of disperser models drive powers from 10 to 50 HP to fulfil any application involving dispersion of small,medium and larger batches.

High Speed Disperser Tewchnical Specification

MODEL
MAIN MOTOR
LIFTING MOTOR

SPEED RANGE

INTER
CHANGEABLE
DISC
WEIGHT
SHELL TOTAL
CAPACITY
ABFHSD 7.5
7.5
1
800-1500
150-200
600
250
ABFHSD 10
10
1
800-1500
150-200
600
250
ABFHSD 15
15
1
800-1500
15s0-200
625
375
ABFHSD 25
25
2
535-1500
250-285
1000
700
ABFHSD 30
30
2
535-1500
250-285
1100
800
ABFHSD 40
40
2
370-1200
325-390
1500
1000
ABFHSD 50
50
2
370-1200
325-390
1700
1250
